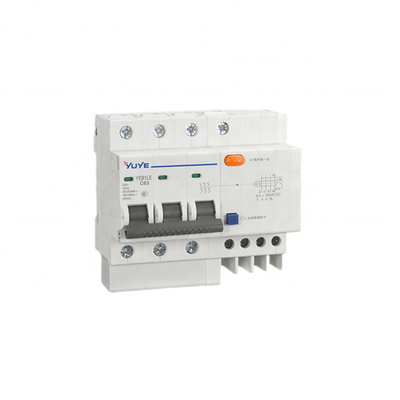

Name: YUYE YEB1-63 3A-63A 1P/2P/3P/4P Miniature Circuit Breaker MCB Electric Circuit Breakers 6000A
Brand: YUYE YEB1-63 3A-63A 1P/2P/3P/4P Miniature Circuit Breaker MCB Electric Circuit Breakers 6000A
SKU: YEB1-63
Price: 4.99 USD
Availability: InStock
Rating: 4.8 (195 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Model Number: YEB1-63

Type: Miniature Circuit Breaker

Poles Number: 1P/2P/3P/4P

Rated Voltage: 230V/400V

Rated Frequency: 50/60hz

Product name: Miniature Circuit Breaker

Rated current In(A): 3A-63A

Rated voltage: 230V-400V

Rated short circuit breaking capacity: 6000A

Pole: 1P/2P/3P/4P

Mechanical life (times): 20000 times

Rated frequency: 50/60 Hz

Anti humid heat type: II

Temperature: 55 degrees

Certificate: IEC60898-1/GB10963.1

Основная информация

Сертификация: IEC60898-1/GB10963.1

Model Number: YEB1-63

Оплата и доставка Условия

Packaging Details: standard export packaging

Supply Ability: 10000 Piece/Pieces per Month

Характер продукции

YEB1

Product details:

Name	Details
Enterprise code	Shanghai Yuhuang Electric Co.,ltd
Product category	Miniature Circuit Breaker
Design code	1
Current rank	63
Pole	1P,2P,3P,4P
Using code	C=Light distribution,D=Motor protection
Rated current	3A~63A

Technical parameter:

Rated voltage(V)	Pole	Rated current(A)	Rated short circuit breaking capacity
Rated voltage(V)	Pole	Rated current(A)	Predictive current of tests(A)	Power factor
230	1	3,6,10,16,20,25,32,40	6000	0.65~0.70
230/400	1			0.65~0.70
400	2,3,4			0.65~0.70
230	1	50,63		0.75~0.80
230/400	1			0.75~0.80
400	2,3,4			0.75~0.80

Remark:

1. Mechanical lifetime:20000 times(off-on)

2. Mechanical lifetime:4000times.

3. Anti humid heat type:Ⅱ(The temperature is 55 degrees,the relative humidity is 95%).

4. Writing with clamp terminal,cross-section of cable can be up to 25 mm².

Outline and installation dimension:
