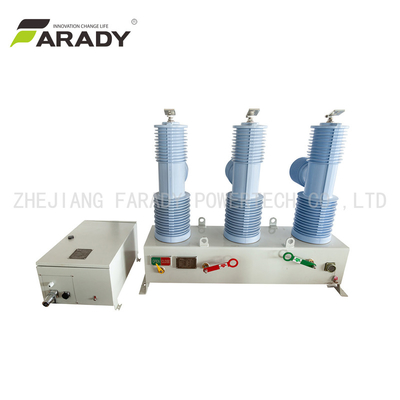

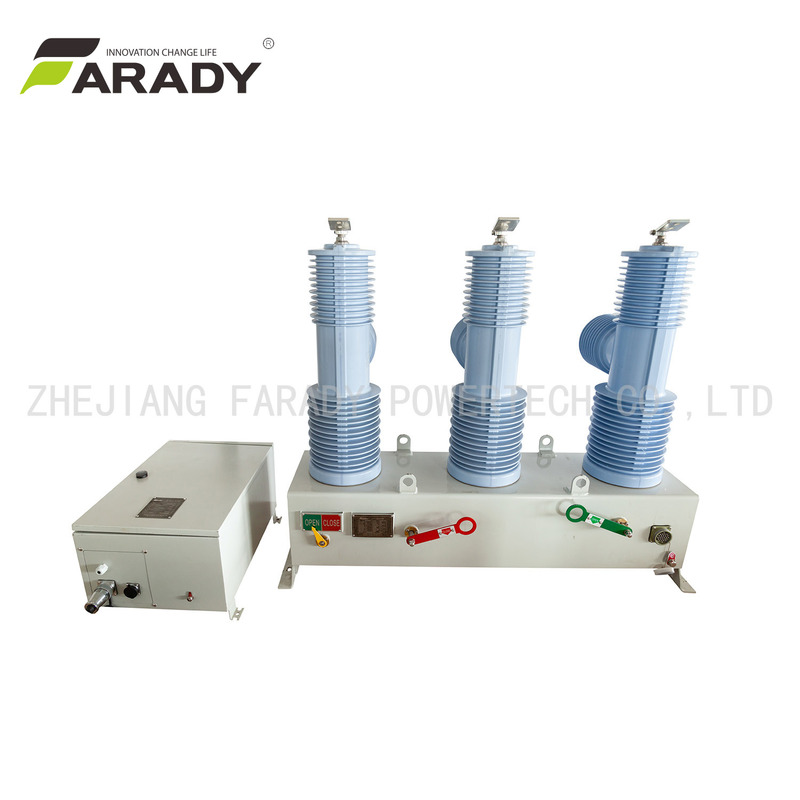

Conventional Outdoor Circuit Breaker 33kv Vacuum Circuit Breaker Automatic Recloser

1.0 Pieces
MOQ
Conventional Outdoor Circuit Breaker 33kv Vacuum Circuit Breaker Automatic Recloser
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Сертификация: type test report
Model Number: FAR
Max. Current: 630
Max. Voltage: 40.5
Product name: outdoor vacuum circuit breaker recloser
Specification: IEC
Function: Conventional Circuit Breaker, Circuit-Breaker Failure Protection
Pole: 3
Hs: 853521000
Material: Steel
Payment: T/T,LC
Frequency: 50Hz
Основная информация
Сертификация: type test report
Model Number: FAR
Оплата и доставка Условия
Packaging Details: wooden case
Supply Ability: 20000 Piece/Pieces per Year
Характер продукции
Product Description

General

Farady Powertech strives to bring our customers the latest technology and competitive pricing and best service for pole mounted Auto circuit recloser
The FAR series Auto circuit recloser can use on overhead distribution lines as well as distribution substation applications for all voltage classes 11kV up to 38kV at 50/60HZ power system. And its rated current can reach 1600A.
The FAR series Auto circuit recloser integrates the functions of control, protection, measurement,communication,fault detection,on-line monitoring of closing or opening.comply to IEC62271 and ANSI/IEEE C37.60 standard

Service environment

a) Air temperature: Maximum temperature: +85ºC; Minimum temperature:-45ºC

b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .

c) Altitude above sea level: Maximum installation altitude: 2500m or more higher.

d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

e) No frequent violent shake

Technical data
Outline size
Certification
Packing & Delivery
About US
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.

We are National Hi-tech enterprise, National Spark plan Program,State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.

Farady is located in Liushi of Yueqing, Zhejiang,China,main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid.

With ISO9001/14001/18001, we are strike for create value for our partner and customer.

There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.

Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from china, and contributes its share to the transformation from the Made in China into the Invented in China.
